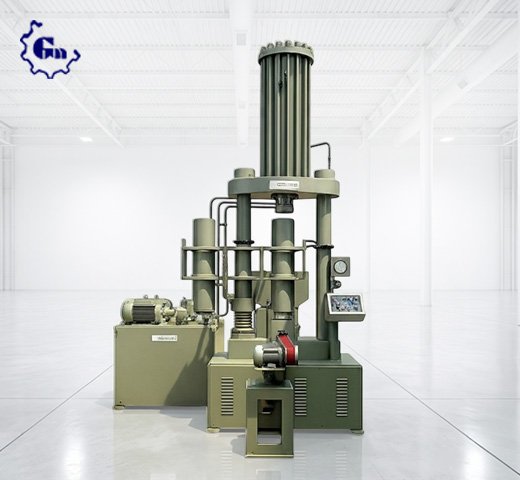

Twin Cylinder Vertical Extruder
Working Process: This type of machine will save your loading time with the help of Twin cylinder. One cylinder will be under extrusion process simultaneously another cylinder will be getting ready.
| Specification | Value |
| Press capacity | 150 Tons |
| Working Hydraulic Pressure | 200 Kg/cm2 |
| Specific Pressure on Flux | 896 Kg/cm2. |
| Hydraulic Cylinder Bore | 317.5 mm. |
| Piston Rod Diameter | 140 mm. |
| Flux Cylinder Length | 850 mm. |
| Oil Tank capacity | 700 Lts. |
| High volume pump input power | 10 Hp. |
Product Video
