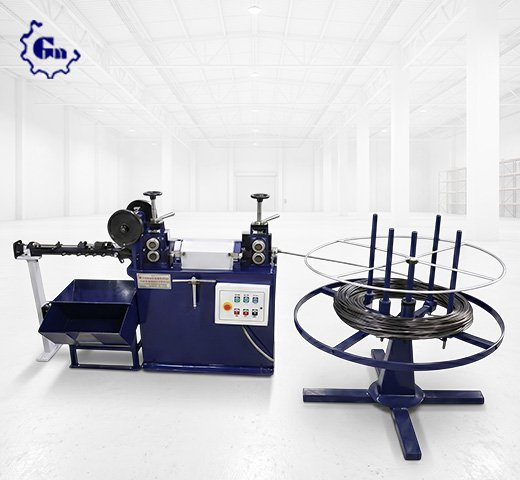

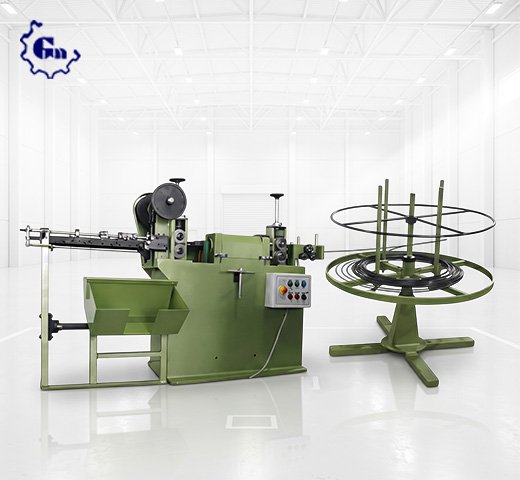

Wire Straightening and Cutting Machine
The drawn coil wire loaded in a coil stand, passes through a high speed unbalanced spinner dies suited in spinner, subsequently cut to standard lengths within required tolerance. The wires are stored in racks. they are moved to the wire feeder in racks using pallet truck.
| Specification | Value |
| Cutting Speed | 80-100 cuts/min in 3.15x350 mm |
| Electrode Quality | IS2879 MS Wire |
| Feed Roller | Ø75mm |
| Scaling Bar | High carbon high chromium hardened plate inset |
| Spinner Die | Tungsten carbide |
| Cutter Nozzle | High carbon high chromium |
| Power | 6 HP |
| Coil Stand Capacity | 200 Kg |
| Gear Box | SA200(5:1) |

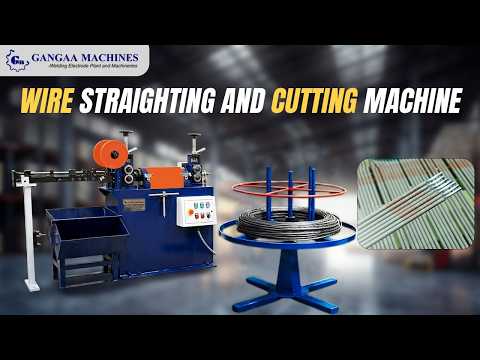

Product Video
